Brand:

FTI Performance

Manufacturer's Part Number:

PPG4

Part Type:

Automatic Transmissions

Product Line:

FTI Performance Pro Powerglide Level 4 Transmissions

FTI-PPG4

UPC:

887753818331

Number of Gears:

2

Bellhousing Bolt Pattern Manufacturer:

Chevy

Transmission Shift Pattern:

Forward

Valve Body Style:

Full manual

Transmission Advertised Horsepower Rating:

1,100

Torque Converter Included:

No

Flexplate Included:

No

Transmission Controller Included:

No

Wiring Harness Included:

No

Transmission Cooler Included:

No

Trans-Brake Included:

Yes

Lockup Compatible:

No

Transmission Pan Style:

Deep

Transmission Pan Material:

Aluminum

Transmission Pan Finish:

Natural

Tailshaft Length (in.):

11.250 in.

Yoke Style:

Slip-on

Input Spline Quantity:

30

Input Shaft Material:

300M

Input Shaft Style:

TH350/400

First Gear Ratio (Automatic Transmissions):

1.80

Clutch Hub:

Billet Steel

Transmission Case Style:

Aftermarket

Transmission Case Material:

Aluminum

Transmission Case Finish:

Natural

Transmission Shield Built In:

No

Flexplate Shield Built In:

No

Fluid Fill Location:

Case

Transmission Fluid Included:

No

Dipstick Included:

No

SFI Rating:

SFI 4.1/ 30.1

Remanufactured:

No

Quantity:

Sold individually.

Notes:

Includes a hardened 4340 output shaft.

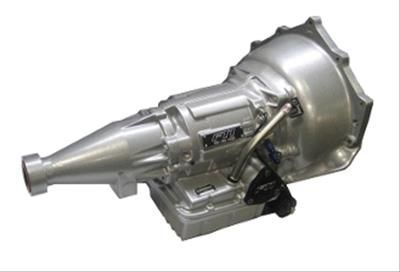

FTI Performance Pro Powerglide Level 4 Transmissions

Racing is for pros--FTI Pro Series Powerglides! Their Level 4 units, like all the Pro Series transmissions, house the greatest advances in racing technology. They are fitted with FTI engineered valve bodies and spiral springs--they will not creep when the brake is set. And they are in-house CNC-machined and hand assembled to ensure every clearance is set to exacting tolerances. Level 4 Powerglides are designed and built for serious racers, that not only need value, but demand dependable, consistent performance while handling the rigors of their high performance engine--in any environment. Every transmission is dyno-tested to confirm they are race-ready and bulletproof. No wonder they are the choice of champions, shouldn't they be yours, as well?

FTI Performance Pro Powerglide Level 4 transmissions feature:

* 1.80 straight-cut gear planetary

* 300m hardened input shaft

* Steel clutch hub

* 6-clutch drum

* Aftermarket SFI-approved case

* High-flow pump

* Deep aluminum pan

* Pro Tree transbrake

* Red race clutches
