Brand:

FTI Performance

Manufacturer's Part Number:

TH400-4.5UB

Part Type:

Automatic Transmissions

Product Line:

FTI Performance TH400 Level 4.5 Transmissions

FTI-TH400-45UB

UPC:

887753825605

Number of Gears:

3

Bellhousing Bolt Pattern Manufacturer:

Chevy

Transmission Shift Pattern:

Reverse

Valve Body Style:

Full manual

Transmission Advertised Horsepower Rating:

1,100

Torque Converter Included:

No

Flexplate Included:

No

Transmission Controller Included:

No

Wiring Harness Included:

No

Transmission Cooler Included:

No

Trans-Brake Included:

Yes

Lockup Compatible:

No

Transmission Pan Style:

Deep

Transmission Pan Material:

Aluminum

Transmission Pan Finish:

Natural

Tailshaft Length (in.):

4.063 in.

Yoke Style:

Slip-on/bolt-on

Input Spline Quantity:

30

Input Shaft Material:

300M

Input Shaft Style:

TH350/400

First Gear Ratio (Automatic Transmissions):

2.43

Clutch Hub:

Billet Steel

Transmission Case Style:

OEM

Transmission Case Material:

Aluminum

Transmission Case Finish:

Black

Transmission Shield Built In:

No

Flexplate Shield Built In:

No

Fluid Fill Location:

Case

Transmission Fluid Included:

No

Dipstick Included:

No

SFI Rating:

SFI 4.1/ 30.1

Remanufactured:

Yes

Quantity:

Sold individually.

Notes:

Features Chevrolet Ultra-Bell bellhousing.

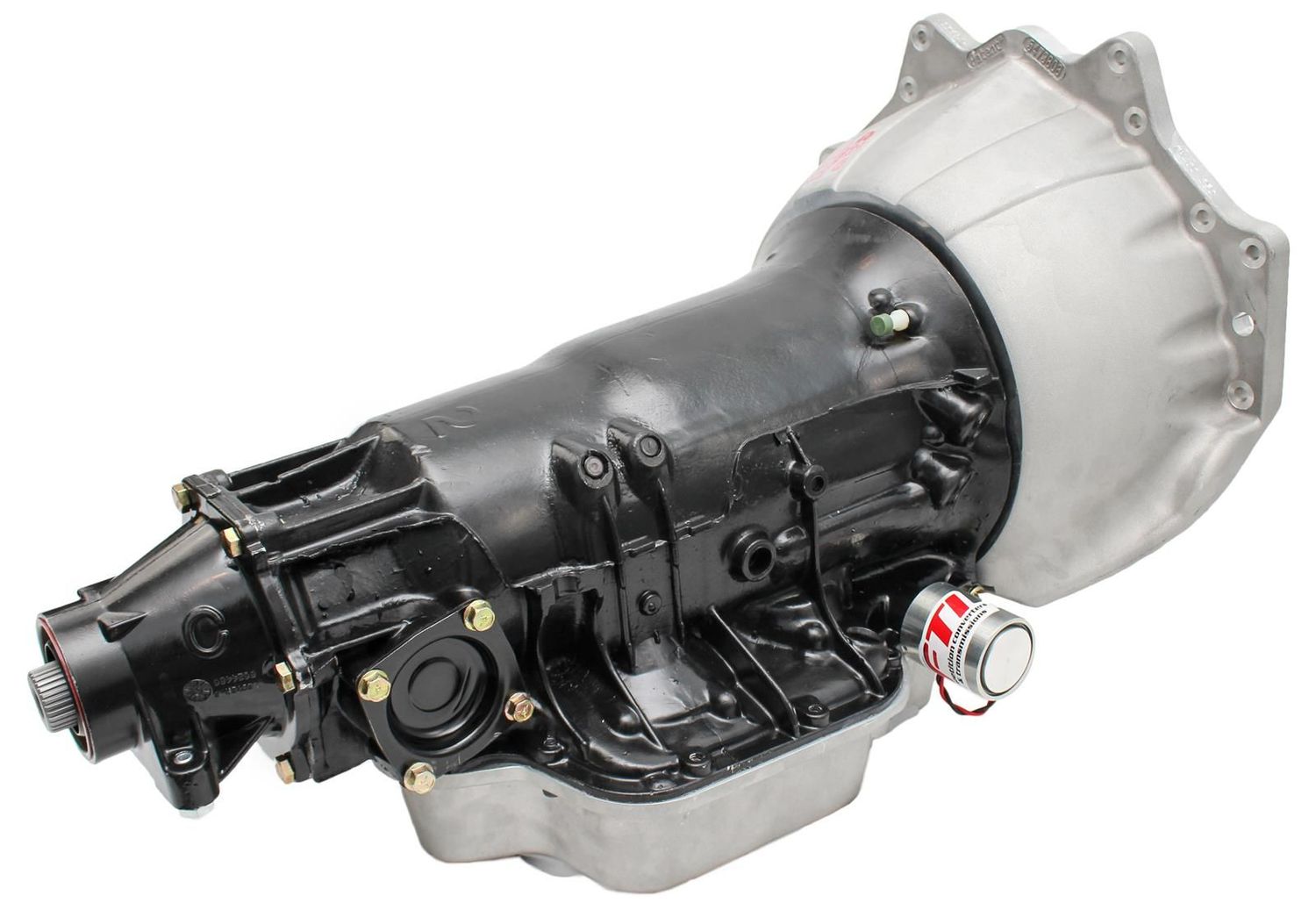

FTI Performance TH400 Level 4.5 Transmissions

FTI Performance TH400 Level 4.5 transmissions begin with a race-prepped factory Chevy case—and end up rated up to 1,100 hp. Each professionally hand-built case includes a short shaft, a billet aluminum drum and forward clutch hub, a 34-element sprague, and race material clutches.

An FTI billet aluminum trans-brake with a full manual reverse valve body is stout enough to handle major power and keeps reverse and first gears closely knit. The included deep aluminum pan allows more fluid capacity for increased cooling, while the 300M input shaft provides amazing strength. Whether you're racing off-road, on the street, or at the track, FTI Performance TH400 Level 4.5 transmissions fit the bill. Order the model best suited for your application.
